NEW 3-in-1 Automotive Oscilloscope DDS Signal Generator Multimeter 50MHz 250MS/s

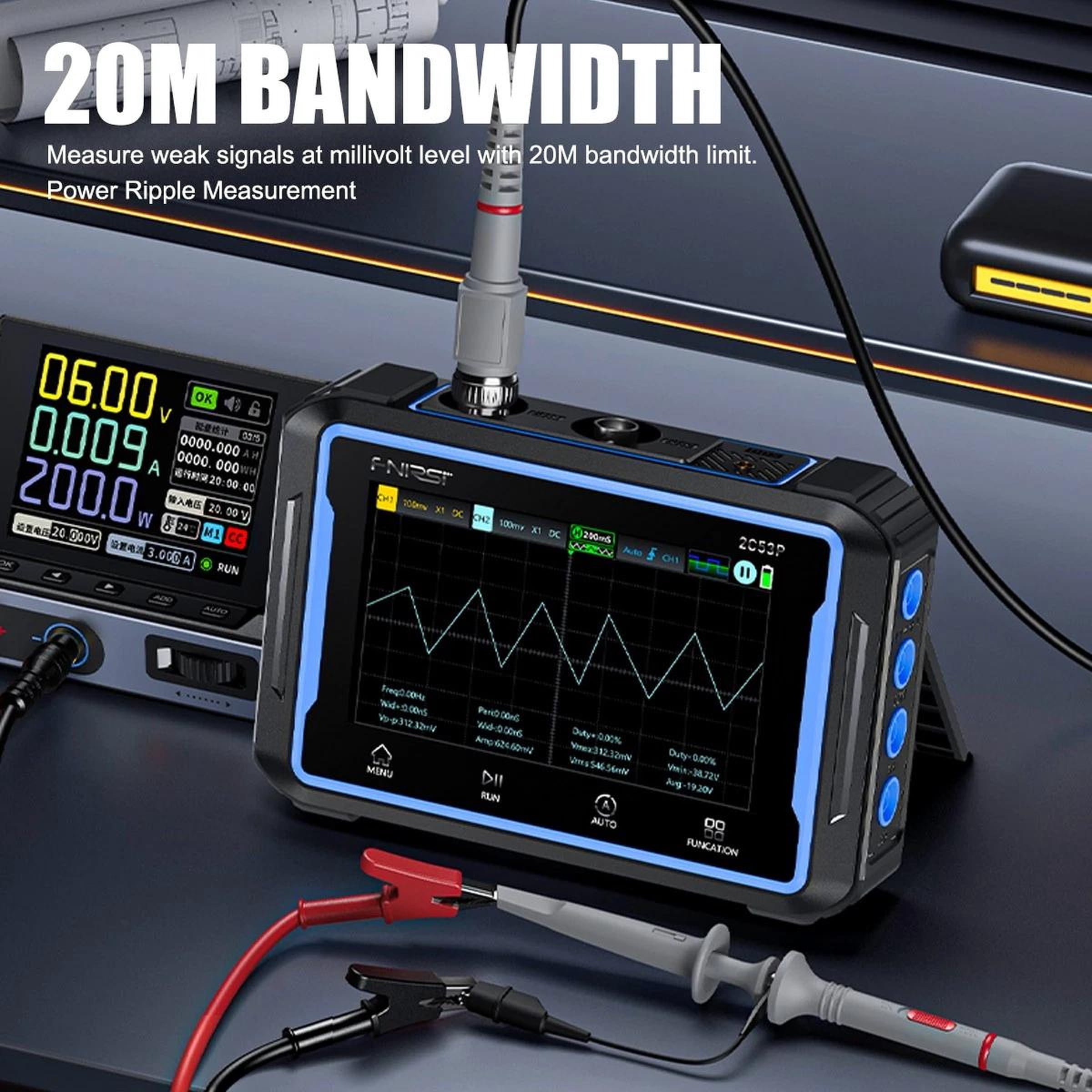

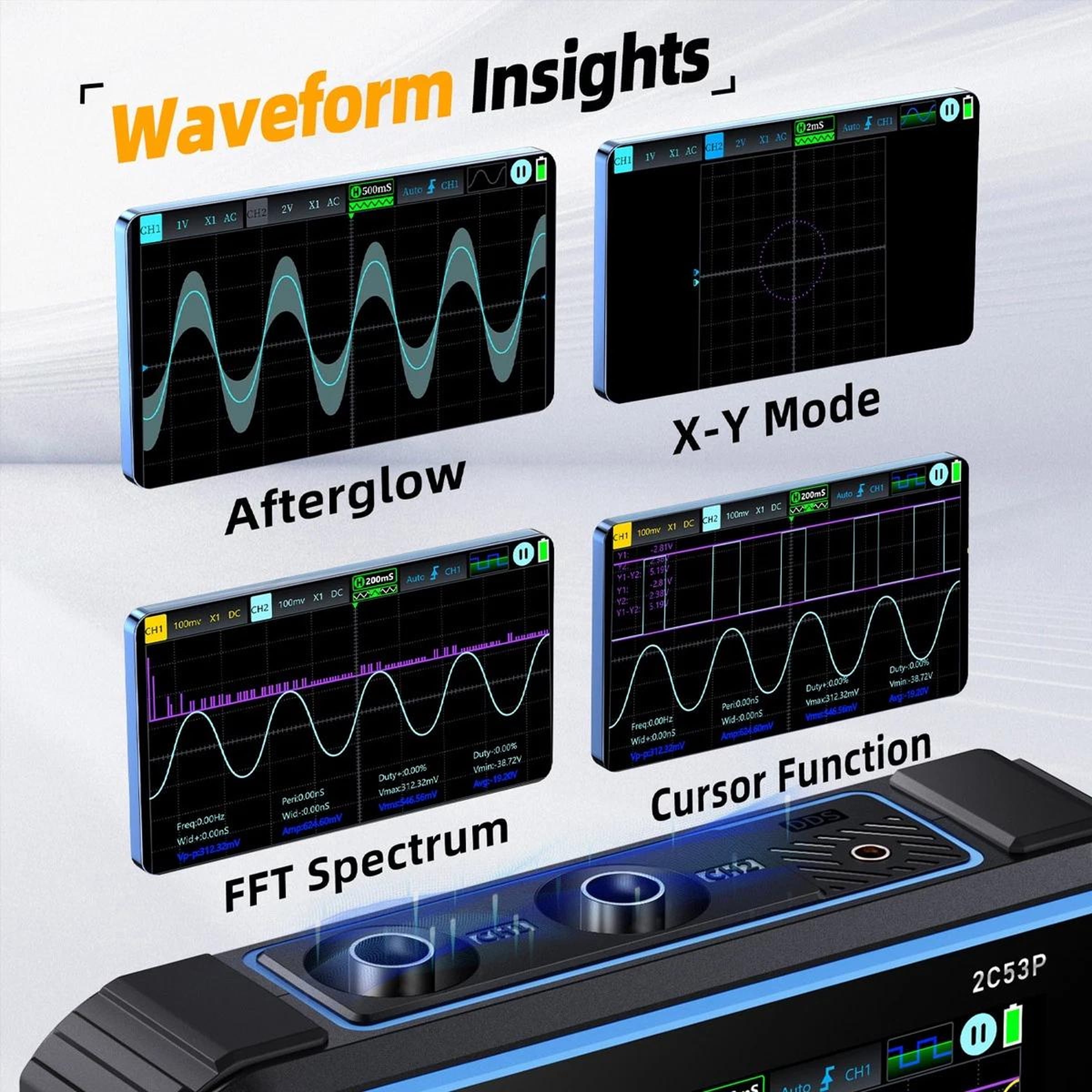

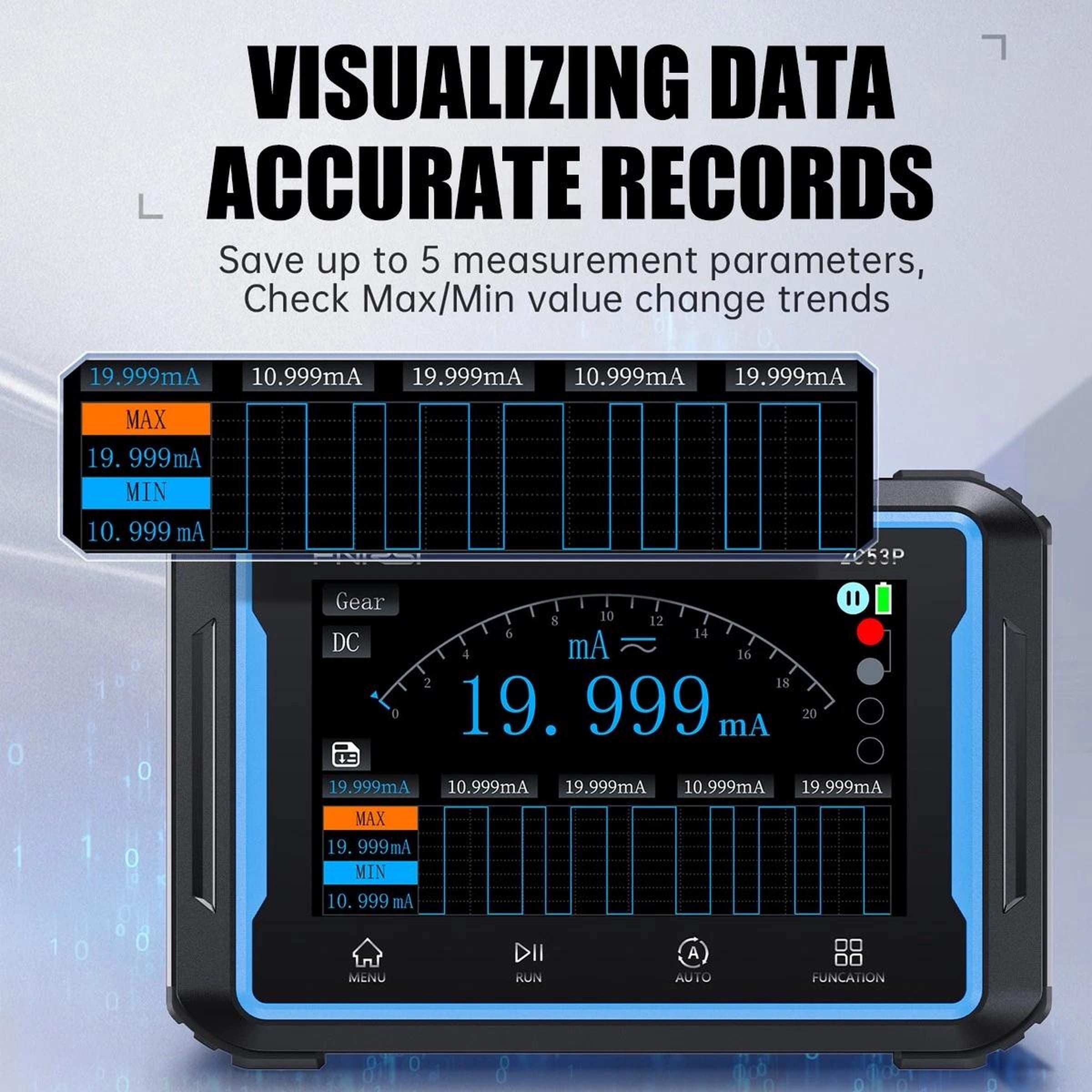

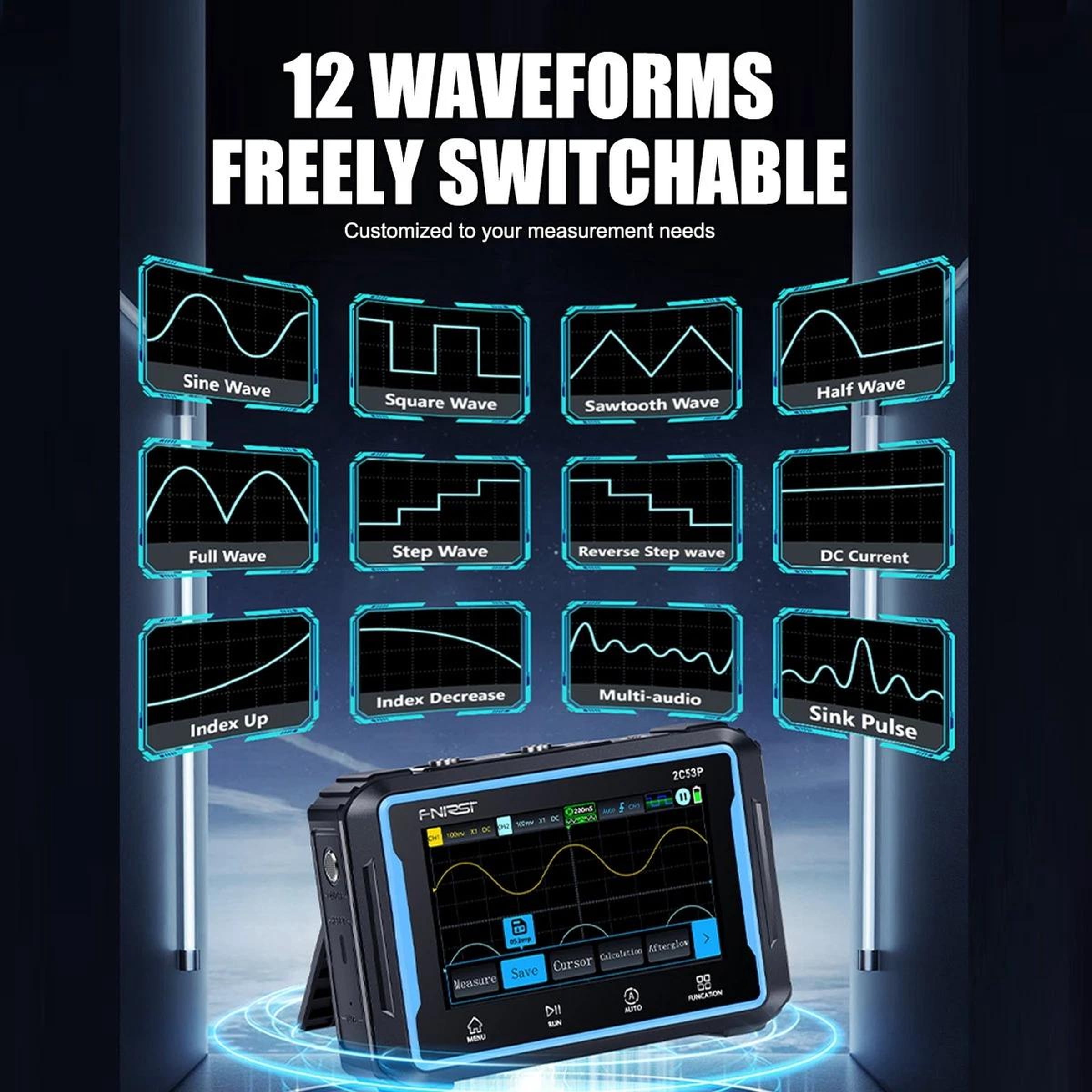

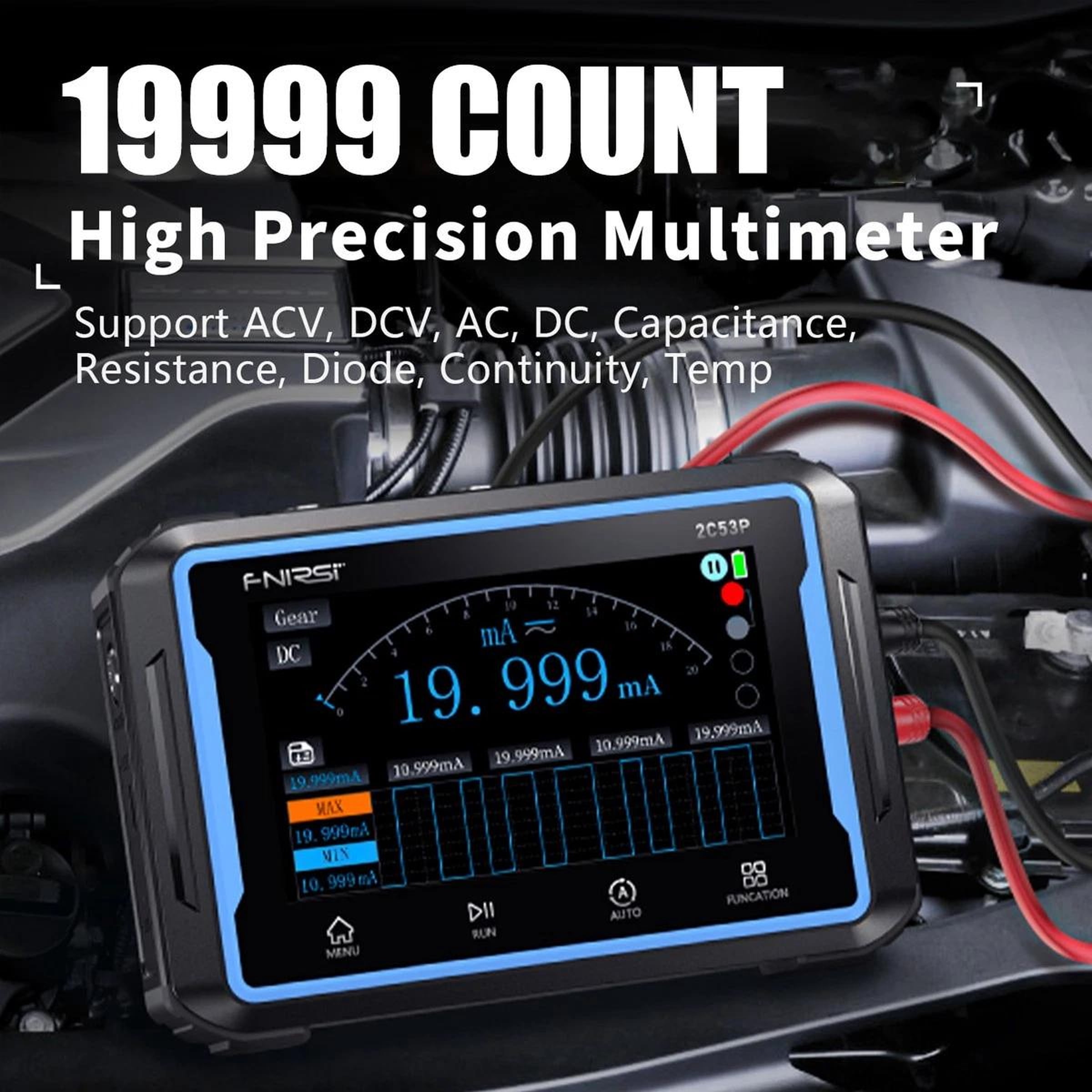

<p>Features:</p> <p>【Professional Instrument】The handheld oscilloscope has three modes: oscilloscope, DDS signal generator and multimeter, with 2 channels, 250MS/s high sampling rate and 50Mhz bandwidth, and can measure voltages up to ±400V.</p> <p>【Precise Analysis】Portable automotive oscilloscope has afterglow, FFT spectrum analysis, cursor measurement, LISSAJOUS graphics display, etc., to visually display the signal relationship, quickly analyze the signal frequency ingredients, and enhance the accuracy of measurement.</p> <p>【Feature-rich】The DDS signal generator can output 12 waveforms, the maximum waveform output frequency can reach 10MHz. Multimeter 19999 counts, 5 measuring values, maximum and minimum real -time display. efficient one-key AUTO, quickly measure, simplify operations.</p> <p>【Powerful technology】4.3-inch IPS ultra-high definition touch screen, 480*272 high resolution. FPGA+MCU+ADC hardware structure can ensure a strong waveform capture function. Support waveform preservation, view and export analysis. Support automatic/normal/single trigger function.</p> <p>【Long-lasting battery life】The digital oscilloscope has a built-in 4000mAh lithium battery with a battery life of about 4 hours, and supports Type-C interface charging to ensure uninterrupted work.</p> <p>Basic parameters:<br>Backlight: backlight brightness can be set<br>Power supply: Type-C (5V/2A)<br>Battery: 4000mAh lithium battery (built-in)</p> <p>Oscilloscope parameters:<br>Channel: dual-channel<br>Real-time sampling rate: 250MSa/s<br>Time base range: 10ns/div-10s/div<br>Waveform display mode: YT/XY/Scroll<br>Input impedance: 1MΩ<br>Probe attenuation factor: 1x/10x<br>Trigger type: rising edge/falling edge<br>Trigger level range: 8 cells (positive and negative)<br>Storage space: 13M<br>Bandwidth: 50MHZ<br>Storage depth: up to 64kByte<br>Vertical Sensitivity: 10mv/div-10v/div<br>Vertical Resolution: 8 bits<br>Bandwidth Limit: Supports 20MHz limit<br>Input coupling: AC/DC<br>Peak voltage: ±400V<br>Trigger mode: automatic/normal/single<br>Measurement data: period, frequency, peak-to-peak, maximum value, minimum average value, RMS value, amplitude, duty cycle, pulse width</p> <p>Signal generator parameters:<br>Different waveform output frequency: sine wave: 10MHZ, other waveforms 5MHZ<br>Waveform frequency: 0-10MHz<br>Waveform amplitude: 0.1V-3.0V<br>Duty cycle of square wave: 0-100%</p> <p>Multimeter parameters:<br>DC voltage: 1.9999V/19.999V/199.99V/1000.0V, accuracy ± (0.5%+3)<br>AC voltage: 1.9999V/19.999V/199.99V/760.0V, accuracy ±(1%+3)<br>DC current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)<br>AC Current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.5%+3)<br>Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/, accuracy ±(1.5%+3)<br>1.9999KΩ/199.99Ω, accuracy ±(0.5%+3)<br>Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, accuracy ±(2.0%+5)<br>9.999mF/99.99mF, accuracy ±(5.0%+20)<br>Temperature: -55~1300℃/-67~2372℉, accuracy ±(2.5%+5)<br>Diode/On/Off: √</p> <p>List<br>1 x Tester<br>1 x Instruction Manual<br>2 x P6100 Probe<br>1 x Type-C Data Cable<br>1 x Multimeter Pen<br>1 x Alligator Clip Probe</p>
